DYCI Swivel – Fully stainless steel

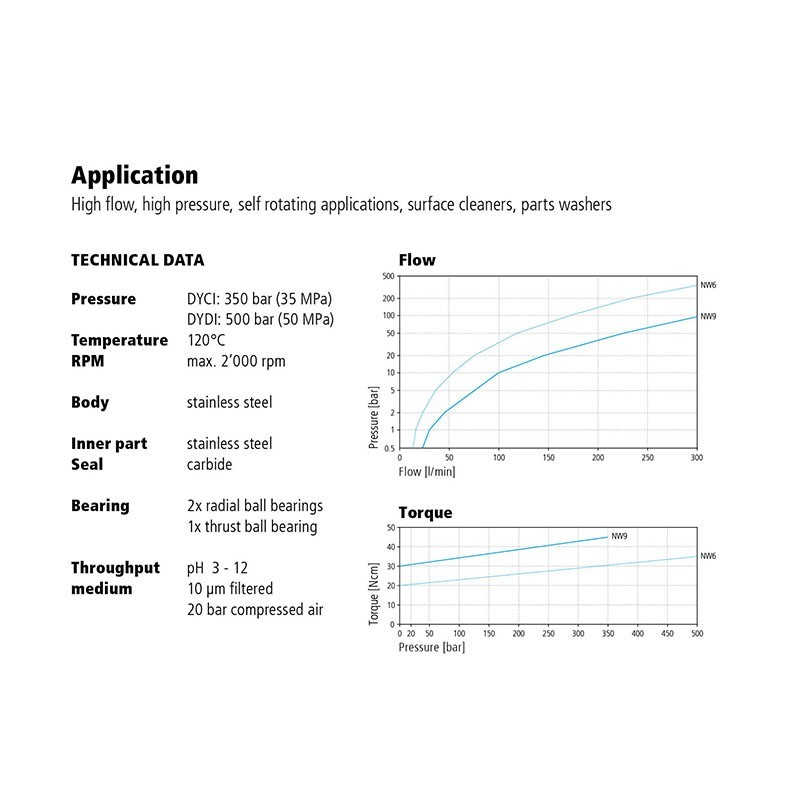

Application

High flow, high pressure, self-rotating applications, surface cleaners, parts washers

Specifications

• Pressure: DYCI: 350 Bar (35 Mpa) DYCI: 500 Bar (50 Mpa)
• Max Speed: 2,000 RPM
• Inlet: 3/8 F
• Outlet: 3/8M
• Inner parts materials: Stainless Steel
• Rated temperature: 120°C
• Seals material: Carbide
• Bearing: 2X radial ball bearings, 1X thrust ball bearings
• Throughput medium: pH 3 – 12, 10 µm filtered, 20 Bar compressed air

Part No. 55.103
